Huiye Rotating Chandelier Lift System, 250KG (550lbs) Capacity, 6m (20ft) Lift Range
Huiye Rotating Chandelier Lift System, 250KG (550lbs) Capacity, 6m (20ft) Lift Range
Couldn't load pickup availability
Shipping
Shipping
We have warehouses in the United States, the UAE, and China. And we ship to the following countries: EU/USA/CA/AU
We will ship your order via air express based on the inventory status of each warehouse and the distance from your address, with a delivery time of 5–12 business days.
Installation
Installation
After you make a purchase, our customer service team will contact you via email and WhatsApp to update you on the logistics progress, follow up on product installation, and answer your questions.
Returns
Returns
For items with quality issues (Rarely happened), please contact us promptly. We will issue a full refund to you after getting in touch with you, and you will not be required to pay the shipping fee.
We do not accept returns for non-quality issues, which means there will be no entry for return requests after your purchase. Therefore, please read the product details carefully before making a purchase.
Product Certificates
-
RCM Certificate
-
CE Certificate
-
SGS Certificate
Cleaning your chandelier is a hassle
—often requiring a professional team for Scaffolding setup. And is very costly.
Crystal & bulb cleaning: Simple, but safe access requires scaffolding.
Why the Innovative Huiye Chandelier Lift is Better
Make the Chandelier Accessible
Wide range of movement. Our standard lift can be used for ceilings up to 35ft. Customized extensions are also available.
Safe and reliable. The power is automatically disconnected when lowered for cleaning
No more ladders. Our lift eliminates the need for risky ladders.
The World Unique 360-degree Rotation Function!
Unique Rotation Function:Experience a uniquely rotating chandelier that adds elegant visual interest, instantly transforming any space into a focal point.
Decorate your chandelier: Lower it to decorate with lightweight items like balloons or ribbons, then raise and rotate to elevate your celebrations.
Installation methods applicable to different types of ceilings
For concrete ceiling
Simply secure the installation using expansion bolts.
If there is a suspended ceiling as shown in the figure, no decorative cover is needed. However, if it is an exposed concrete ceiling, a decorative cover is required.
For sloped concrete ceiling
If it is necessary to install on a beam where the beam area is smaller than the back of the lift, or if the installation surface is sloped, fully threaded screws must be embedded into the ceiling to ensure the lift operates in a level, downward position.
Concealed Mounting for Wooden attics
We generally recommend installing between ceiling joists (as shown in the bottom-right image). However, if the spacing between the joists is unsuitable for installation, you can use the method shown in the left image.
The left image shows 16" OC spacing, while the top-right image shows 24" OC spacing. In both cases, wooden blocks are added on top of the ceiling joists as carriers. The steel bars is connected to the lift and placed on these carriers.
For Sloped wooden roofs
You need to construct a wooden platform to ensure the lift operates in a parallel position.
Notes:Generally, a remote control is sufficient. The Wall Switch Control needs additional purchase.
The wired switch can only be connected using UL2464 4-Core Signal Cable AWG24 signal cable, instead of a power cable or it will destroy the main unit.
Installed With Cover
How is our after-sales service?
We have warehouses and staff in the UAE, the United States, and China. No matter where you are, after your purchase, our customer service team will contact you for follow-up guidance until you successfully install the product.
Our products rarely have quality problems, but if we do, we will actively take responsibility and reduce customer losses. The following are the cases of two customers who had quality problems in the past year.

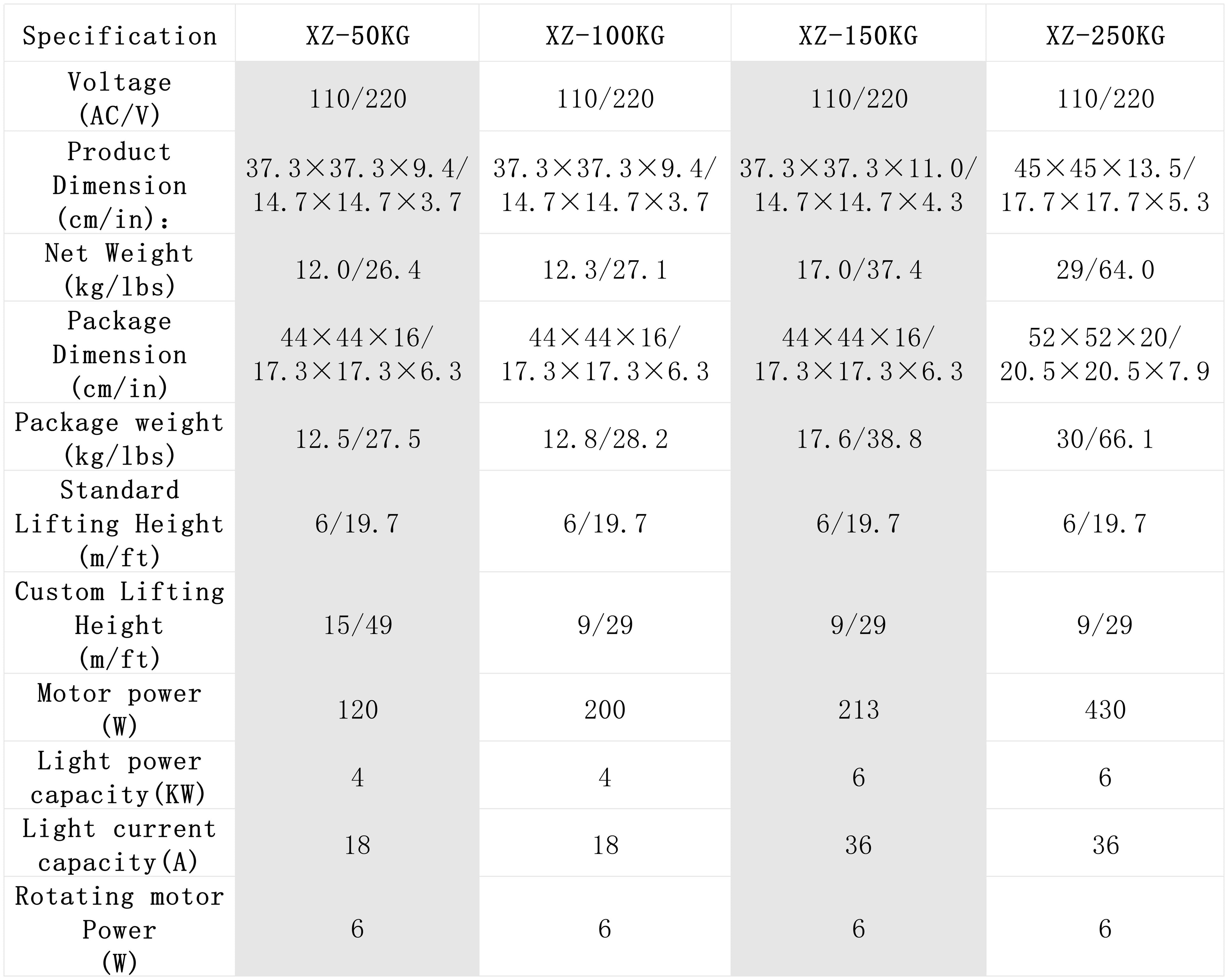

Product Specification
FAQ
When is the best time to install?
When is the best time to install?
The best time to install the lift is during construction or renovation when you have easy access to ceiling joists and wiring. For existing ceilings, plan for any needed modifications, like adding a backer board or repairing drywall.
How can I determine if my chandelier and my ceiling are suitable for installing a chandelier lift?
How can I determine if my chandelier and my ceiling are suitable for installing a chandelier lift?
If your ceiling is a flat concrete ceiling, it is very suitable for installing our chandelier lift. If your ceiling is sloped, you can use long-thread screw or build a flat plane downwards using a wooden truss. For more details, please click here.
What Are the Installation Methods and Wiring Instructions for Motorized Chandelier Lift System
What Are the Installation Methods and Wiring Instructions for Motorized Chandelier Lift System
It is typically wired together with the chandelier. When the chandelier is powered on, the chandelier hoist/motor also receives electricity. For more details, please click: Learn More
What are your shipping methods, and how long will it take for me to receive my product?
What are your shipping methods, and how long will it take for me to receive my product?
We have warehouses in the United States, the UAE, and China. We will ship your order via air express based on the inventory status of each warehouse and the distance from your address, with a delivery time of 5–12 business days.
Is it suitable for use in a country where the voltage is neither 110V nor 220V?
Is it suitable for use in a country where the voltage is neither 110V nor 220V?
Our product is compatible with voltage standards ranging from 110V±20V and 220V±20V, covering most regions globally.
How to Determine if a Decorative Cover is Needed?
How to Determine if a Decorative Cover is Needed?
- If your ceiling is exposed concrete, we recommend purchasing our decorative cover.
- If your ceiling is concrete with a suspended ceiling (drywall) and there is a gap of more than 15cm between the drywall and the concrete, you can install the lift within this gap and then repair the drywall.
If your ceiling is wooden with ceiling joists:
- Concealed Mounting: You can purchase two steel channels and drill holes to secure them across the ceiling joists (provided that the joist spacing is 16 inches or more). This method allows the lift to be installed between the joists without requiring a decorative cover, but drywall repair will be necessary.
- Surface Mounting: You can purchase a mounting board, such as plywood (at least 1/2 inch thick) or a metal plate (at least 1/4 inch thick). First, remove the drywall in the installation area, drill holes in the mounting board, and attach it beneath the ceiling joists. Then, secure the lift to the mounting board using bolts and install a decorative cover. Generally, the decorative cover will conceal the removed drywall area, eliminating the need for drywall repair. Learn More
How long is your warranty, and what is your after-sales policy?
How long is your warranty, and what is your after-sales policy?
Upon successful installation and testing of the product, we offer a 4-year warranty (Yes! that's right, four whole years!)along with permanent usage guidance services. If the product is damaged within the four-year period, we provide free replacement services. Additionally, if the product fails to function properly during pre-installation ground power testing, we offer a free replacement service. For more details, please click: Our After-Sales Policy.
Customer Reviews
What impressed me most was that Huiye didn’t just sell me the product and disappear. Their staff followed up regularly, checked my progress, and made sure the lift was working perfectly in my ceiling. That’s rare customer service these days.
When I ran into some trouble during wiring, I contacted Huiye. They immediately responded with clear instructions and diagrams. Thanks to their help, I finished the setup without hiring extra technicians. Very reliable company. And the chandelier lifter is also very sturdy.
Beautiful. Just checkout the video. Everything worked perfectly - had some questions with the installation instructions and customer service responds within the day and stays with me through installation. Provided additional videos and diagrams when prompted about wiring and operation. A few things that are in the instructions but should be called out so others don't miss them (like I did :D):- If the lift (and the chandelier connected to it) are powered on, ascend and descend buttons WILL LOCK after 20 min. Spin button will still work. This is to prevent children from messing with the remote. Simply turn off power and power back on to reenable ascend and descend.- don't press the 3rd button on the remote (human head label) unless you know EXACTLY what you are doing - it apparently is for programming the height of the maximum descend or something.
This is the first time I’ve ever seen a machine that can actually rotate a chandelier—it’s seriously cool. Every time we have guests over, I turn on the rotation and it always gets compliments.It also has a lift function, which works great, though the motor is a bit loud (not a big deal since we don’t use it that often). What really impressed me was the customer service. They responded quickly and explained everything I needed to know about wiring and installation in great detail.The system includes special steel bars for 16’’ ceiling joists, which really helped, but depending on your setup, you might need to make a few adjustments. In my case, I added a sister joist for extra support. The support team gave me solid advice every step of the way—they clearly know what they’re doing.
Very nice chandelier lift that also allow you to rotate the chandelier. It works very nicely but it does make a slight short chirp when the chandelier is turned on. Not an issue as we’ve gotten used to it. A nice improvement would be to turn it off with the remote.Great way to access a chandelier from a tall ceiling and also rotate it for the best viewing angle.
